3-in-1

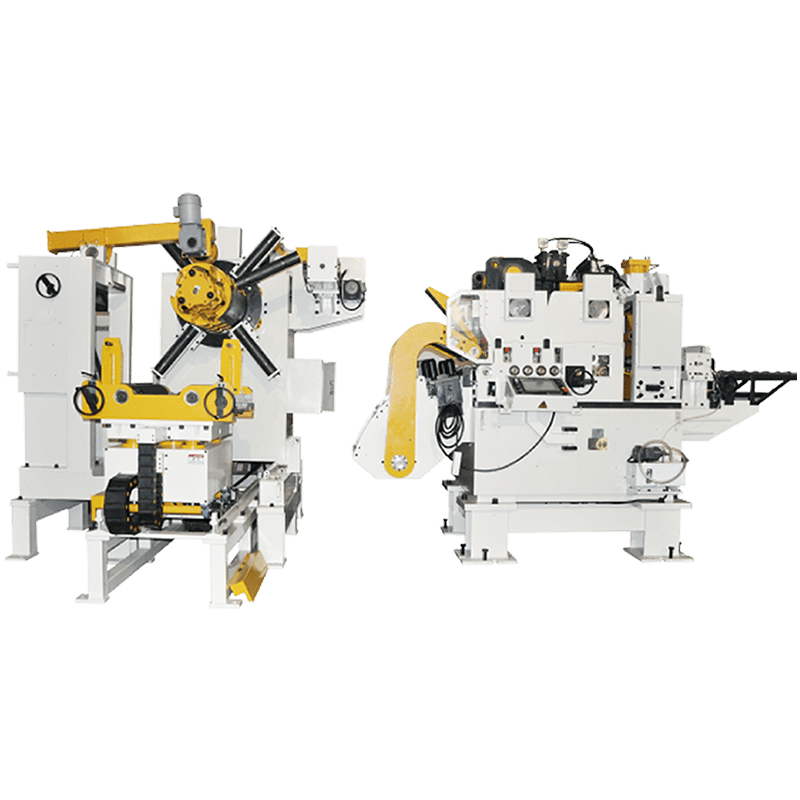

3 in 1 Decoiler x Straightener x Feeder【1.0-9.0mm】
Integrating decoil straighten and feeding functions.
With reinforced machine body structure
Suitable for straightening high-strength coiled materials.
Feature
Characteristic
Through an integrated equipment system, it executes the processing and feeding of steel materials.
01
- Maximum material width : 100-1800mm
- Thickness of 9.0mm.
- Utilizing 9 working rollers and a reinforced machine body structure
- Suitable for straightening high-strength coiled materials.
- Facilitating convenient cleaning and maintenance of the rollers.
- Users friendly: parameter storage function for easy retrieval in subsequent uses..
- Load Capacity: Up to 15 tons
- Optional accessories include oil coating device, hydraulic shear, and material support arms.
02
- Equipped with renowned Yaskawa servo systems, ensuring high-precision feeding.
- Safety Operation: Utilizes an integrated control system with a self-diagnostic system, ensuring the safety of operators.
- Diverse Model Options: Customer requirements can be discussed with our personnel for special specifications.
- Produced for: Automotive parts, precision instruments, mechanical automation and electrical components.
Product Specifications
Specifications
Product specifications can be customized and according to your requirements.
Kutron would provide the optimal solutions to achieves maximum value and benefits.
| Model | KLF5-600 |
|---|---|
| Coil Width | 70-600 |
| Coil Thickness | 1.0-9.0 |
| Coil Weigh | 5000 |
| Max Coil O.D. (mm) | 1400 |
| Max Coil I.D. (mm) | 508 |
| Max Feeding Length | ~500※ |
| Feeding Speed | 16 |
| Straightening Roll | Upper5 /Lower4 |
| Back Pressure Roller | Provided |
| Feed Accurary | ±0.2mm |
| Servo Motor | 15 |
| Uncoiler Motor | 3.7 |
| Uncoiler Expansion | Hydraulic |
| Power Voltage | AC220V 60HZ / AC380V 60HZ |
| Operating Air Pressure | 0.49 |
| Feeding Level | 1200±100 |
| Standard Price(USD) | VIP |
* Join member to unlock the VIP price
* The following prices are quoted in USD dollars. 【Transportation, service, installation and distributor price should be quoted upon request.】
* The following prices are quoted in USD dollars. 【Transportation, service, installation and distributor price should be quoted upon request.】
* Kutron Technology reserves the right to explain price modifications and price changes.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.

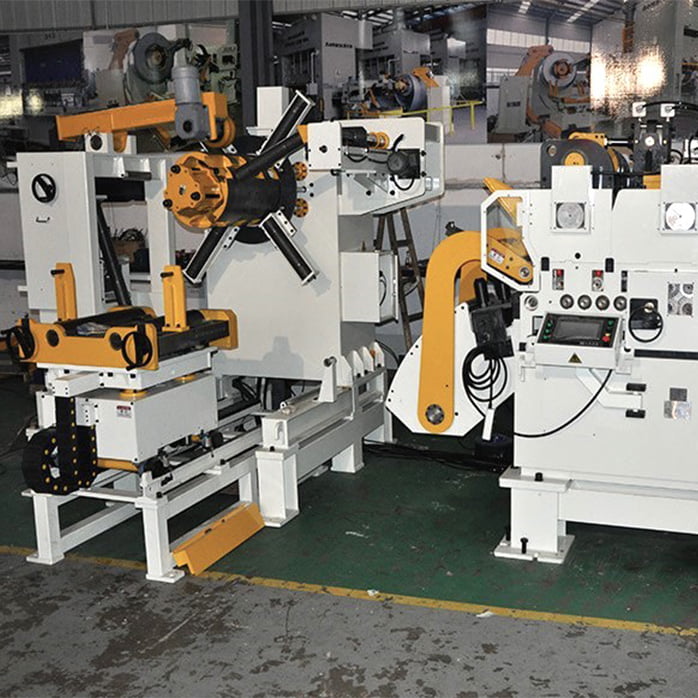

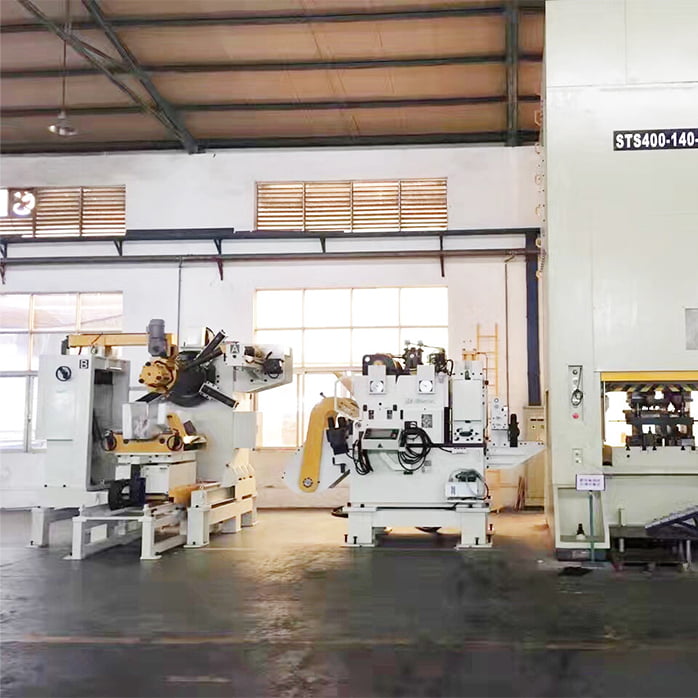

Case Studies
