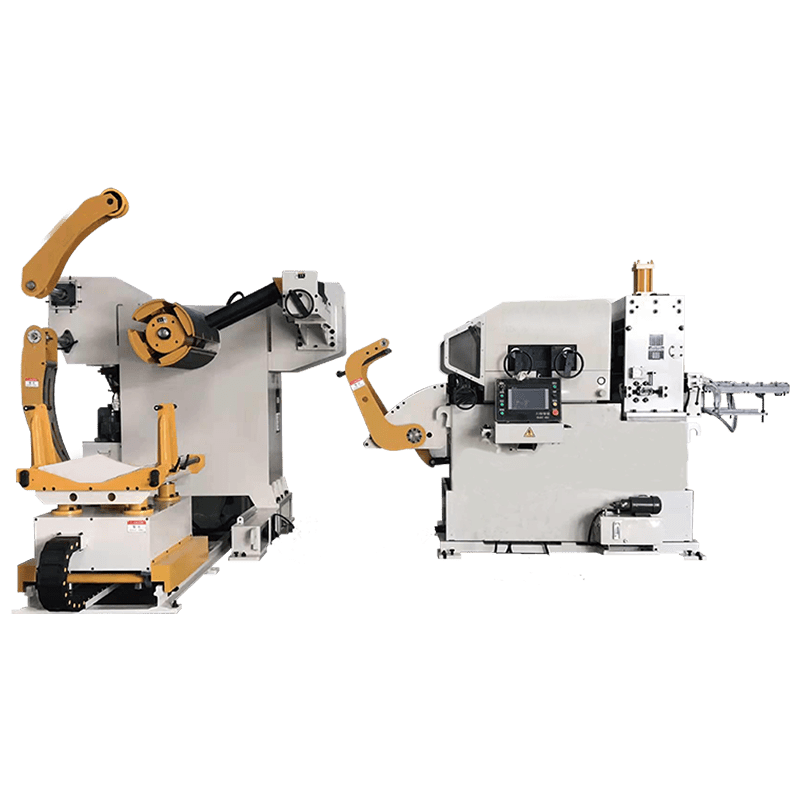

3 in 1 Decoiler x Straightener x Feeder 【0.3-4.5mm】
Integrating decoil straighten and feeding functions into one unit.
The integrated design reduces material handling and setup time, leading to increased productivity.
Feature
Characteristic
Through an integrated equipment system, it executes the processing and feeding of steel materials.
Extremely useful for applications in the metal processing and manufacturing industries that involve handling metal coils.
01
- Maximum material width : within 100-1800mm
- Maximum thickness : within 4.5mm.
- Feeding Precision: Achieve accuracy of +/- 0.2mm with pneumatic release system
- Load Capacity: Up to 15 tons, optional carriage device, and other accessories available.
- Expansion: Adopting hydraulic expansion, effectively saving labor and improving work efficiency.
- Equipped with Yaskawa servo systems , ensuring high-precision feeding.
02
- Rollers undergo special heat treatment, with high hardness (HRC62°), wear resistance, and long lifespan.
- Safety Operation: Utilizes an integrated control system with a self-diagnostic system, ensuring the safety of operators.
- Diverse Model Options: Customer requirements can be discussed with our personnel for special specifications.
- Produced for: Small hardware components, automotive parts, metal products, precision instruments, and electrical components.
Product Specifications
Specifications
Product specifications can be customized and according to your requirements.
Kutron would provide the optimal solutions to achieves maximum value and benefits.
| Model | KLF3-400 | KLF3-600 | KLF3-800 | KLF3-1000 |
|---|---|---|---|---|
| Coil Width | 50-400 | 50-600 | 50-800 | 50-1000 |
| Coil Thickness | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 |
| Coil Weigh | 5000 | 5000 | 7000 | 7000 |
| Max Coil I.D. (mm) | 508 | 508 | 508 | 508 |
| Max Coil O.D. (mm) | 1400 | 1400 | 1400 | 1400 |
| Max Feeding Length | ~500※ | ~500※ | ~500※ | ~500※ |
| Max Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 |
| Straightening Roll | Upper4 /Lower3 | Upper4 / Lower3 | Upper4 / Lower3 | Upper4 / Lower3 |
| Feeding Roller | 1 | 1 | 1 | 1 |
| Servo Motor | AC4.4 | AC74.4 | AC5.5 | AC7.5 |
| Uncoiler Expansion | Hydraulic | |||
| Power Voltage | 200/380 | 200/380 | 200/380 | 200/380 |
| Operating Air Pressure | 0.49 | 0.49 | 0.49 | 0.49 |
| Standard price (USD) | $30,000 | VIP | VIP | VIP |
| Optional: Hydraulic trolley (USD) | $5,100 | VIP | VIP | VIP |
* Join member to unlock the VIP price
* The following prices are quoted in USD dollars. 【Transportation, service, installation and distributor price should be quoted upon request.】
* The following prices are quoted in USD dollars. 【Transportation, service, installation and distributor price should be quoted upon request.】
* Kutron Technology reserves the right to explain price modifications and price changes.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.

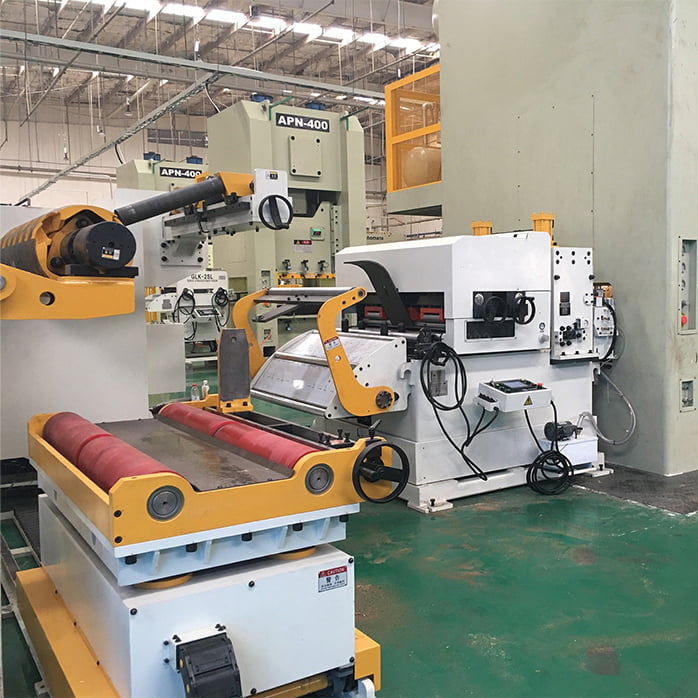

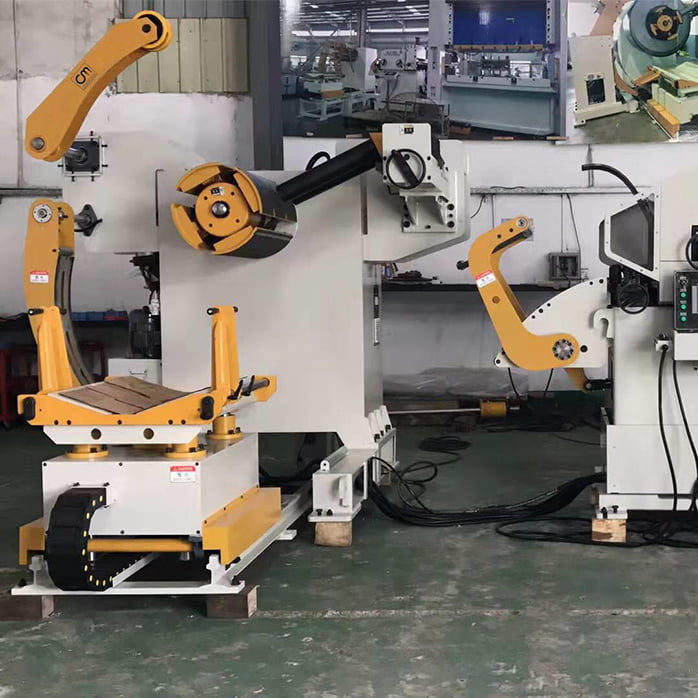

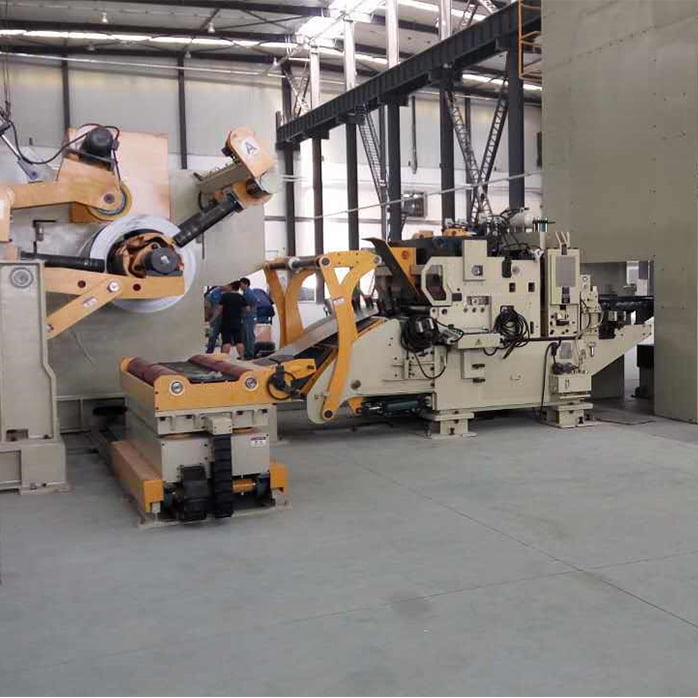

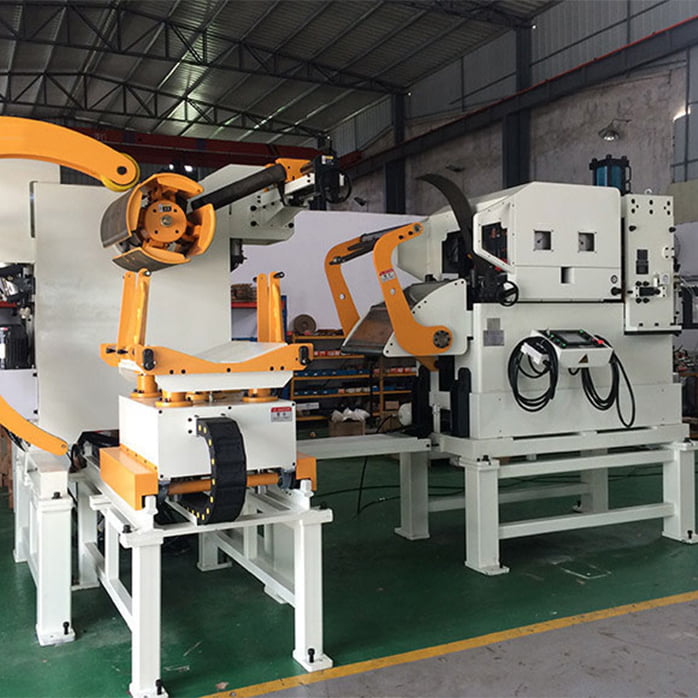

Case Studies
