3-in-1

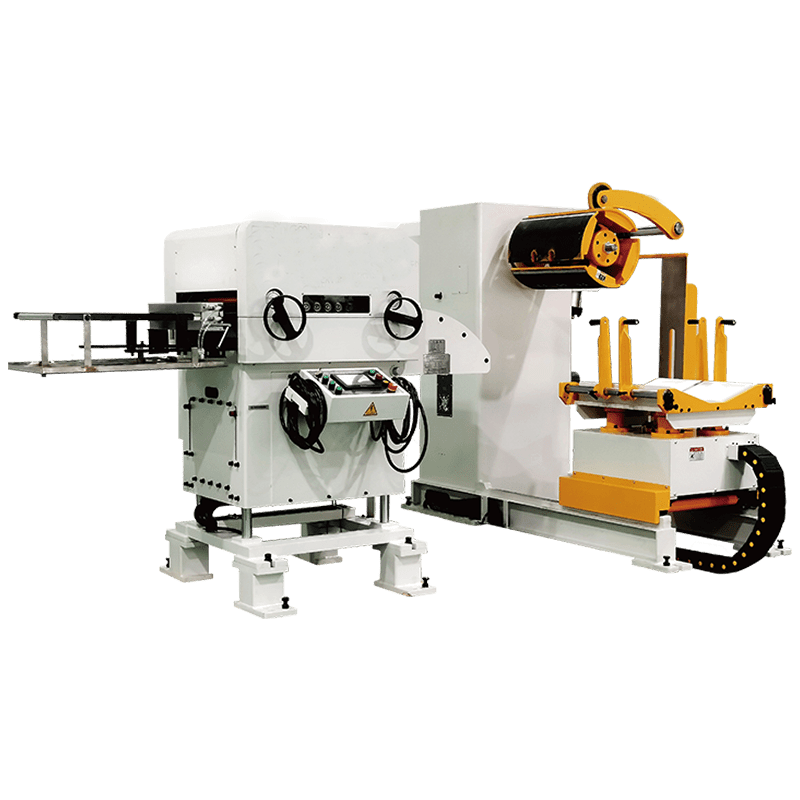

3 in 1 Decoiler x Straightener x Feeder 【0.3-3.2mm】
Integrating decoil straighten and feeding functions into one unit.
The integrated design reduces material handling and setup time, leading to increased productivity.
Feature
Characteristic
commonly used in various industries, such as metalworking, electronics, and automotive manufacturing, where precise and automated material feeding is crucial for efficient and high-quality production.
01
- Maximum material width within 100-1800mm
- Maximum thickness within 3.2mm.
- Feeding Precision: Achieve +/- 0.2mm with pneumatic release system .
- Load Capacity: Up to 15 tons, optional carriage device, and other accessories available.
- Expansion: Adopting hydraulic expansion, effectively saving labor and improving work efficiency.
- Equipped with Yaskawa servo systems ,ensuring high-precision feeding.
02
- Rollers undergo special heat treatment, with high hardness (HRC62°), wear resistance, and long lifespan.
- Safety Operation: Utilizes an integrated control system with a self-diagnostic system, ensuring the safety of operators.
- Diverse Model Options: Customer requirements can be discussed with our personnel for special specifications.
- Produced for: Small hardware components, automotive parts, metal products, precision instruments, and electrical components.
Product Specifications
Specifications
Product specifications can be customized and according to your requirements.
Kutron would provide the optimal solutions to achieves maximum value and benefits.
| Model | KLF2 - 400 | KLF2 -500 | KLF2 - 600 | KLF2 - 800 | KLF2 - 1000 |
|---|---|---|---|---|---|
| Coil Width | 50-400 | 50-500 | 50-600 | 50-800 | 50-1000 |
| Coil Thickness | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 |
| Coil Weigh | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max Coil I.D. (mm) | 508 | 508 | 508 | 508 | 508 |
| Max Coil O.D. (mm) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Max Feeding Speed | 16 | 16 | 16 | 16 | 16 |
| Feeding Accuracy | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Straightening Roller | Upper6 / Lower5 | ||||
| Feeding level | 1200±100 | 1200±100 | 1200±100 | 1200±100 | 1200±100 |
| Power Voltage | 380VAC 60HZ | 380VAC 60HZ | 380VAC 60HZ | 380VAC 60HZ | 380VAC 60HZ |
| Operating Air Pressure | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² |
| Uncoiler Expansion | Hydraulic | ||||
| Servo Motor | AC2.9 | AC4.4 | AC4.4 | AC5.5 | AC5.5 |
| Uncoiler Motor | AC1.5 | AC1.5 | AC2.2 | AC2.2 | AC3.7 |
| Standard price(USD) | $25,300 | $27,300 | VIP | VIP | VIP |
| Optional: Hydraulic trolley (USD) | $4,700 | $4,700 | VIP | VIP | VIP |
* Join member to unlock the VIP price
* The following prices are quoted in USD dollars. 【Transportation, service, installation and distributor price should be quoted upon request.】
* The following prices are quoted in USD dollars. 【Transportation, service, installation and distributor price should be quoted upon request.】
* Kutron Technology reserves the right to explain price modifications and price changes.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.
* The actual price is based on the official order.
* In response to market price adjustments for raw materials, there will be no further notice if there are any price changes.
* The above prices are for standard machines. If there are customized requirements, we will quote separately.

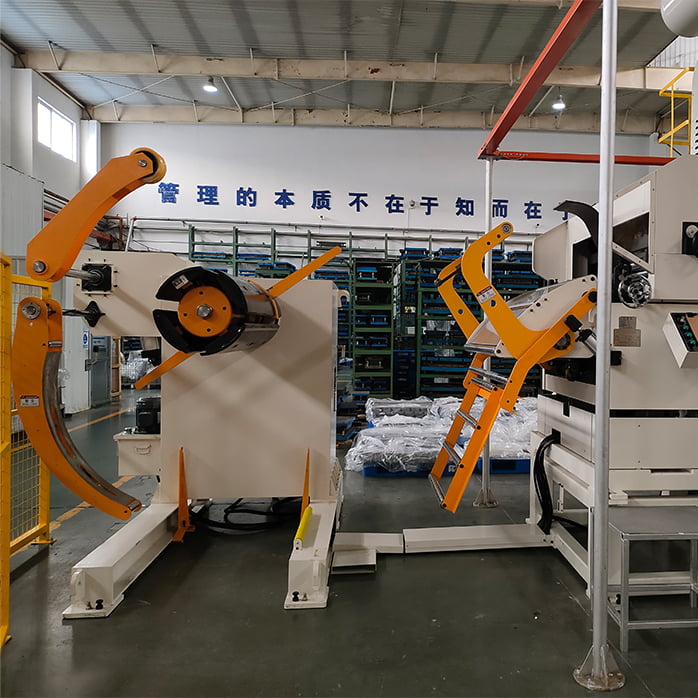

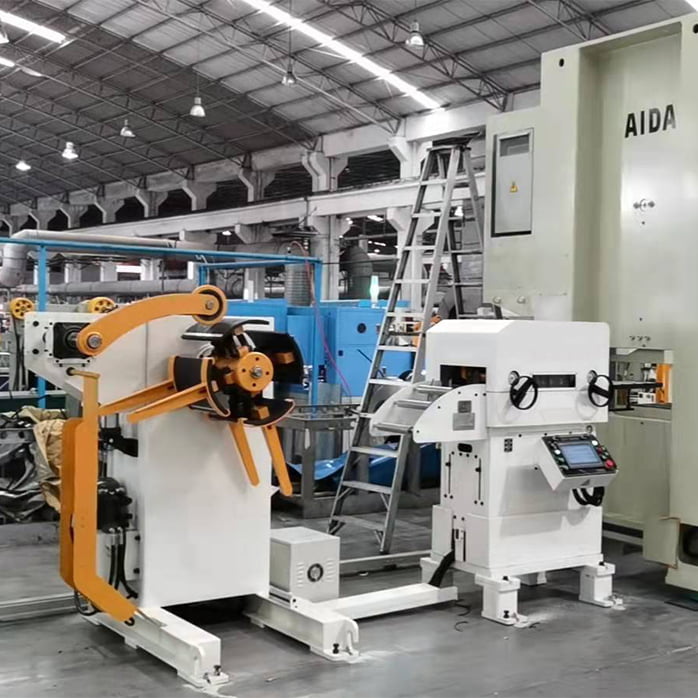

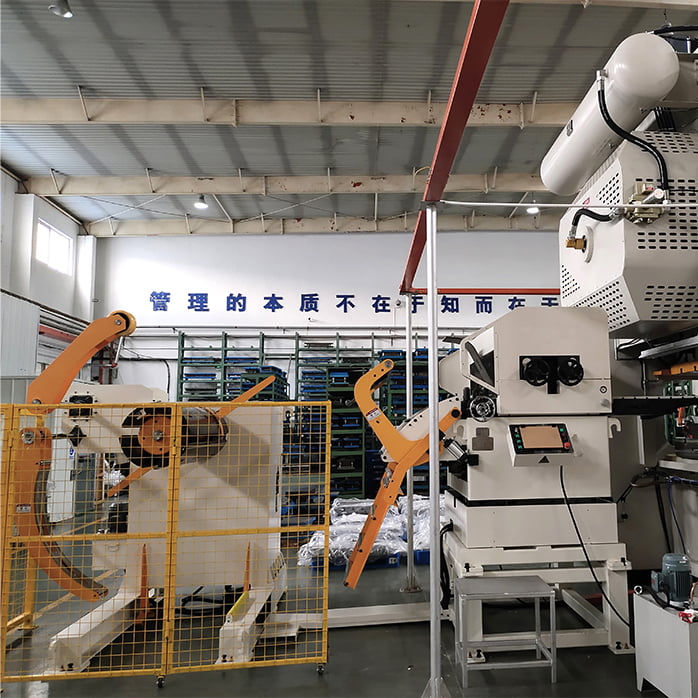

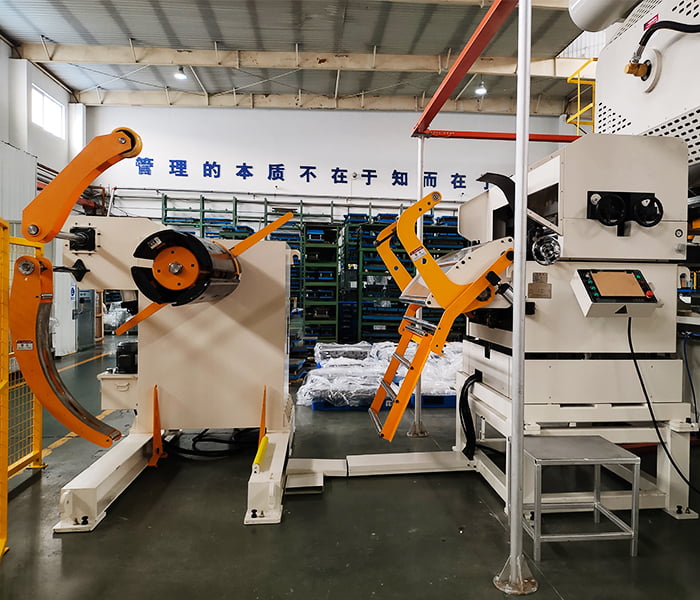

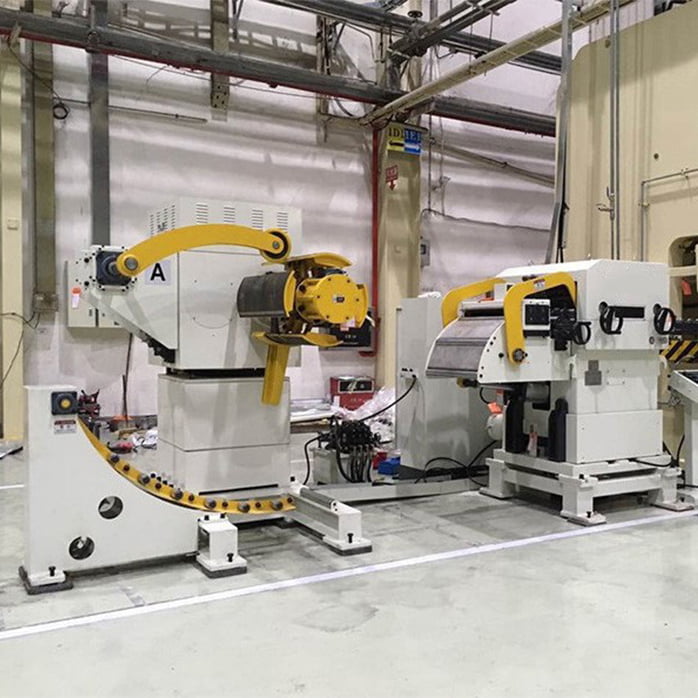

Case Studies
