KSV-3 Multi-station Servo Transfer
High-steel integrated structure, with a high-speed operating speed of up to 50 S.P.M. It utilizes C3 precision grinding level screws, demonstrating excellent positioning accuracy.
Feature
Characteristic
Provide high-quality and high-efficiency production, and meet various process processing requirements.
01
- Suitable for: C-Type / H-Type / Gantry Punch Press
- Characteristics: High-speed Interlinked Production
- Max Speed: Max 50 spm @ X stroke: 200mm (unloading)
- Applicable Table Size: Less than 2500mm for Gantry Press
- Interlinking Feature: Synchronized Operation - (CAM control)
- Drive Components :C3 Precision Screws (Modular Specifications) + Heavy-Duty Linear Guides
- Motor Components: Yaskawa Servo Motors +BECKHOFF Controllers
- Number of Motor Synchronization Axes: 5 axes
02
- Drive components are modular, spare parts are standardized.
- For external installation both left and right sides.
- Suitable for mass production, and modular processes.
- With dynamic accuracy values within < 0.05mm.
- Have a smaller footprint.
- User-friendly operation, easy addition of control modules.
- Expandable for machine networking and status monitoring.
- Achieves consistent production with high precision, efficiency, and a high return on investment.
Application Configuration
Configure
Suitable for industries such as computers,
TFT/LCD monitors, electronics, automotive, and other medium to large-sized sheet metal stamping workpieces.
In Feed Coiler, destacker, Conveyor
Pressing Die Specializing in the design and manufacturing of multi-station dies, progressive dies, and other professional dies, we offer high-quality, customized die solutions.
3-axis Vacuum cup type, Electric gripper, Pneumatic gripper, Electromagnet, Design of heat-insulated grippers for hot stamping.
Out put Robot Arm, Stacker, Conveyor, CCD Inspection Machine, Welding and Other Follow-up Needs.
*Customization adjustments can be made for various machine models.
Application
Configuration
Configuration
Fitting
Accessories
Standard equipment is all equipped with well-known brands to meet the requirements of precision.
To achieve high-speed operation, effectively enhancing high rigidity and load capacity.
-
Delta
Integrated human-machine-interface
With Handwheel Simulation Function
-
Beckhoff
Controller
Best Response Speed
-
Yaskawa
Servo Motor
High Inertia and High Torque Precision Servo
-
PMI
Linear Guideway
Heavy Load and Long Life Rail
-
APEX
Gearbox
With High Precision
-
PMI
Ballscrews
C3-grade Precision Ground Ballscrews
-
PMI
Customized Ultra-Low Backlash Helical Gear/Rack
Customized Ultra-Low Backlash Helical Gear/Rack
-
Other Equipment
Automatic Lubrication System
Automatic Lubrication System
-
Other Equipment
Japan's Top 5 Bearing Brands
Japan's Top 5 Bearing Brands
-
Other Equipment
Electrical Control Box Thermostat
Electrical Control Box Thermostat (Cooling/Heating)
Processed Products
Processed Product

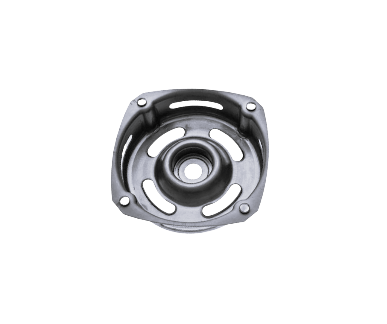

Precision stamping processing, production of high-quality metal parts.
Product Specifications
Specifications
Product specifications can be customized and expanded according to your specific requirements. Through customization, we are committed to providing optimal solutions to ensure that your investment achieves maximum value and benefits.
- 01
- Model
- KSV-3-250-150-50
- 02
- Feed Stroke(X)
- 0-250
- mm
- 03
- Clamping Stroke(Y)
- 0-150
- mm
- 04
- Lift Stroke(Z)
- 0-50
- mm
- 05
- Distance between rails(Clamping)
- Min 350
- mm
- 06
- Distance between rails(Unclamping)
- Max 650
- mm
- 07
- Max move range(Including rails)
- 850
- mm
- 08
- Weight loading
- 50
- kgs
- 09
- Transfer Motion
- 3-axis
- motion
- 10
- Stroke per minute
- 35
- spm
