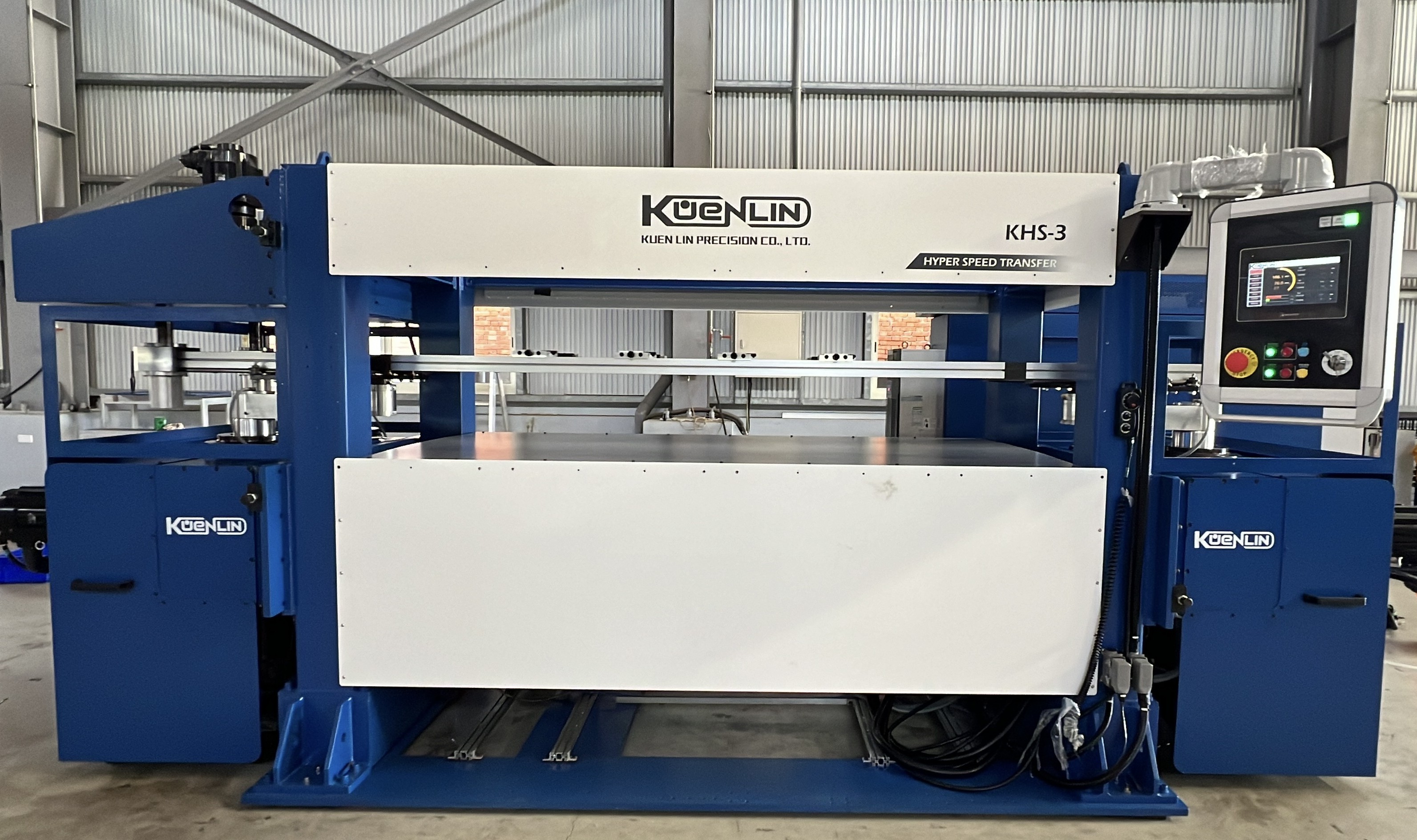

KHS-3 Hyper Speed Transfer
Latest high-speed 3D transfer system, reaching up to 100 SPM with multi-station synchronization — achieving progressive-die-level efficiency, reducing waste, and boosting productivity.
Feature
Characteristic
Provide high-quality and high-efficiency production, and meet various process processing requirements.
01
- Suitable for: Medium-to-Large Press / Gantry Press
- Ultra-fast production: 100 SPM without mold, 20–40% faster than similar market equipment.
- Max Speed: Max 100 spm @ X stroke: 200mm (unloading)
- Applicable Table Size: Less than 3200mm for Gantry Press
- Material savings: Reduces scrap rate by over 20%, cutting raw material costs and supporting green manufacturing trends.
- High flexibility: Modular transfer mechanism enables quick product changeovers, reducing line downtime.
- Stable precision: 3D transfer accuracy <0.05 mm ensures consistent product quality.
- Low maintenance cost: Core drive module with lubrication-free design reduces maintenance downtime.
02
- Drive components are modular, spare parts are standardized.
- For external installation both left and right sides.
- Suitable for mass production, and modular processes.
- With dynamic accuracy values within < 0.05mm.
- Have a smaller footprint.
- User-friendly operation, easy addition of control modules.
- Expandable for machine networking and status monitoring.
- Achieves consistent production with high precision, efficiency, and a high return on investment.
Fitting
Accessories
Standard equipment is all equipped with well-known brands to meet the requirements of precision.
To achieve high-speed operation, effectively enhancing high rigidity and load capacity.
-
Delta
Integrated human-machine-interface
With Handwheel Simulation Function
-
Beckhoff
Controller
Best Response Speed
-
Yaskawa
Servo Motor
High Inertia and High Torque Precision Servo
-
PMI
Linear Guideway
Heavy Load and Long Life Rail
-
APEX
Gearbox
With High Precision
-
PMI
Ballscrews
C3-grade Precision Ground Ballscrews
-
Kuenlin
Customized Ultra-Low Backlash Helical Gear/Rack
Customized Ultra-Low Backlash Helical Gear/Rack
-
Other Equipment
Automatic Lubrication System
Ensures consistent lubrication for longer lifespan
-
Other Equipment
Japan's Top 5 Bearing Brands
Japan's Top 5 Bearing Brands
-
Other Equipment
Electrical Control Box Thermostat
Electrical Control Box Thermostat (Cooling/Heating)
Product Specifications
Specifications
Product specifications can be customized and expanded according to your specific requirements. Through customization, we are committed to providing optimal solutions to ensure that your investment achieves maximum value and benefits.
- 01
- Model
- KHS-3-200-115-100
- 02
- Feed Stroke(X)
- 0-200
- mm
- 03
- Clamping Stroke(Y)
- 0-115
- mm
- 04
- Lift Stroke(Z)
- 0-100
- mm
- 05
- Distance between rails(Clamping)
- 300
- mm
- 06
- Distance between rails(Unclamping)
- 560
- mm
- 07
- Feed bar cross-section
- 80*60
- mm
- 08
- Bolster Area
- <3200
- mm
- 09
- Transfer Motion
- 3-axis
- motion
- 10
- Stroke per minute *Without die load
- 100
- spm
*Customization adjustments can be made for various machine models.
