Small

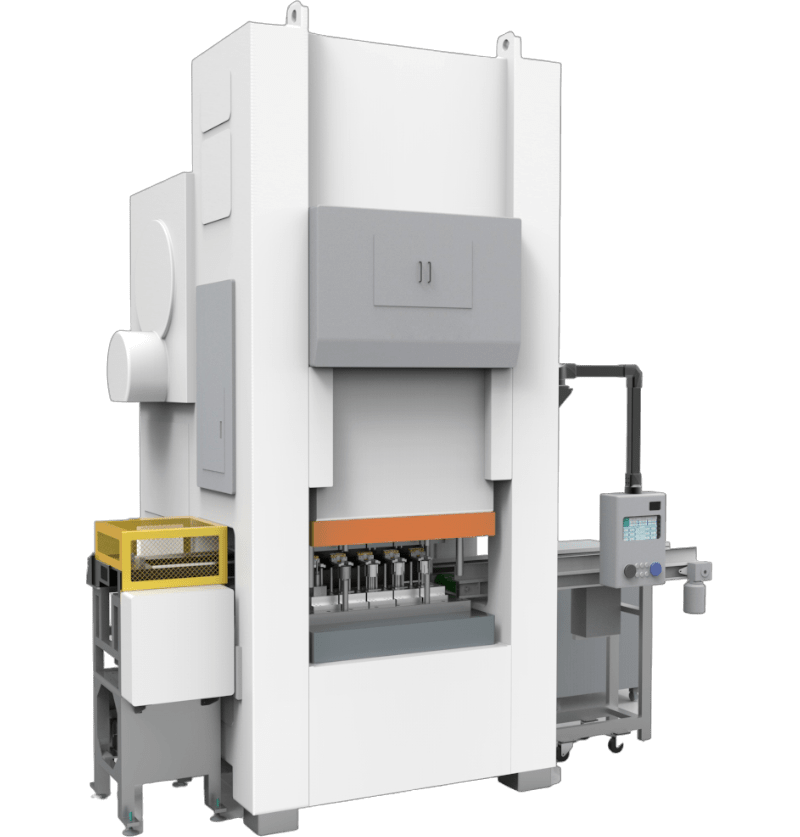

KSBT-3-S Multi-station Servo Transfer
Suitable for compact production area, with low-volume, diversified product, high-speed, and modular production operations. and it's easily to do the fixture design.
Feature
Characteristic
Provide high-quality and high-efficiency production, and meet various process processing requirements.
01
- Suitable for: Small Punch Press – C-Type / H-Type / Gantry Punch Press
- Characteristics: High-speed Interlinked Production
- Max Speed: Max 30 spm @ X stroke: 300mm (unloading) TBD customize*
- Applicable Table Size: To be defined
- Interlinking Feature: Synchronized Operation - (CAM control)
- Drive Components : KL Grinding Low Backlash Gear Rack (Modular Specifications) + Heavy-Duty Linear Guides
- Motor Components: Yaskawa Servo Motors + BECKHOFF Controllers
- Number of Motor Synchronization Axes: 3 axes
02
- Drive components are modular, and spare parts can be standardized.
- For internal installation on rear side.
- Expandable with feeding and receiving systems.
- Dynamic accuracy values within < 0.05mm.
- Motion curves can be adjusted interactively for optimization.
- User-friendly operation, easy addition of control modules.
- Expandable for machine networking and status monitoring.
- Achieves consistent production with high precision, efficiency, flexibility, and a high return on investment.
Application Configuration
Configure
Suitable for industries such as computers, TFT/LCD monitors, electronics, automotive, and other medium to large-sized sheet metal stamping workpieces.
In Feed Coiler, destacker, Conveyor
Pressing Die Specializing in the design and manufacturing of multi-station dies, progressive dies, and other professional dies, we offer high-quality, customized die solutions.
3-axis Vacuum cup type, Electric gripper, Pneumatic gripper, Electromagnet, Design of heat-insulated grippers for hot stamping
Out put Robot Arm, Stacker, Conveyor, CCD Inspection Machine, Welding and Other Follow-up Needs
*Customization adjustments can be made for various machine models.
Application
Configuration
Configuration
Fitting
Accessories
Standard equipment is all equipped with well-known brands to meet the requirements of precision
To achieve high-speed operation, effectively enhancing high rigidity and load capacity.
-
Delta
Integrated human-machine-interface
With Handwheel Simulation Function
-
Beckhoff
Controller
Best Response Speed
-
Yaskawa
Servo Motor
High Inertia and High Torque Precision Servo
-
PMI
Linear Guideway
Heavy Load and Long Life Rail
-
APEX
Gearbox
With High Precision
-
PMI
Ballscrews
C3-grade Precision Ground Ballscrews
-
PMI
Customized Ultra-Low Backlash Helical Gear/Rack
Customized Ultra-Low Backlash Helical Gear/Rack
-
Other Equipment
Automatic Lubrication System
Automatic Lubrication System
-
Other Equipment
Japan's Top 5 Bearing Brands
Japan's Top 5 Bearing Brands
-
Other Equipment
Electrical Control Box Thermostat
Electrical Control Box Thermostat (Cooling/Heating)

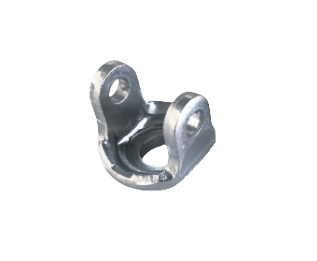

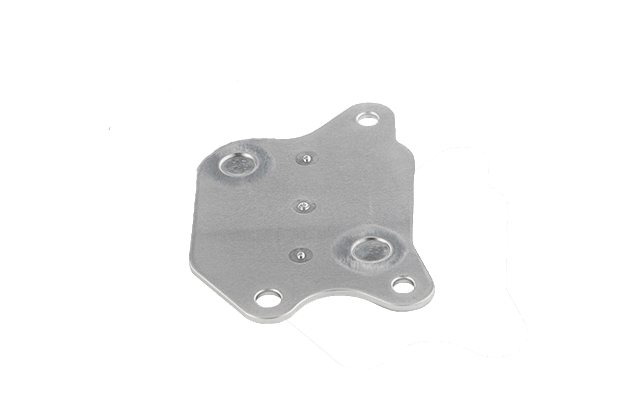

Processed Products
Processed Product
Precision stamping processing, production of high-quality metal parts.

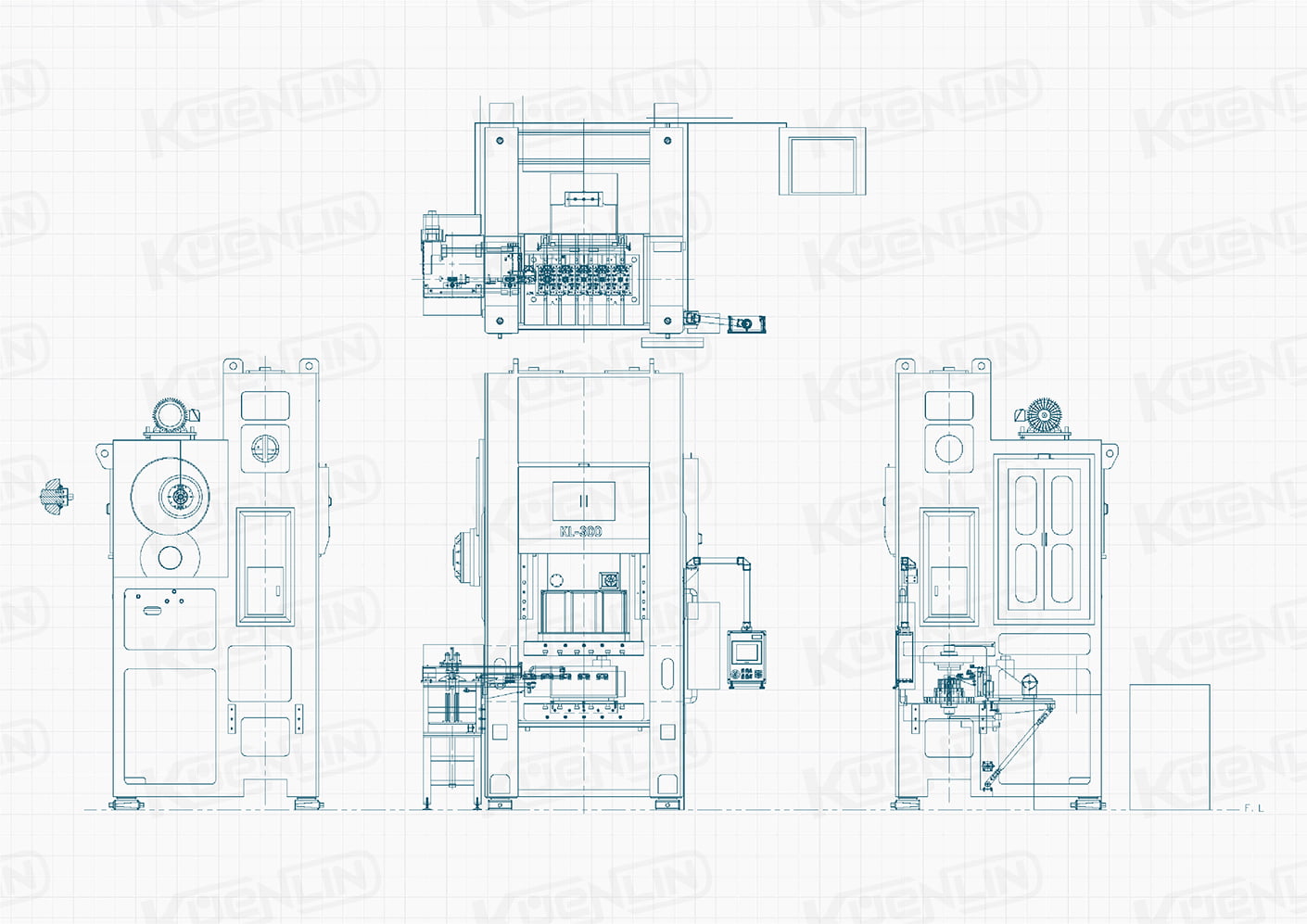

Product Specifications
Specifications
Product specifications can be customized and according to yourrequirements.
Kuenlin would provide the optimal solutions to achieves maximum value and benefits.
- 01
- Model
- KSBT-3-300-150-50
- 02
- Feed Stroke (X)
- 0-300
- mm
- 03
- Clamping Stroke (Y)
- 0-150
- mm
- 04
- Lift Stroke(Z)
- 0-50
- mm
- 05
- Distance between rails (Clamping)
- -
- mm
- 06
- Distance between rails (Unclamping)
- -
- mm
- 07
- Max move range (Including rails)
- -
- mm
- 08
- Weight loading
- 50
- kgs
- 09
- Transfer Motion
- 3-axis
- motion
- 10
- Stroke per minute
- 25
- spm
*Customization adjustments can be made for various machine models.

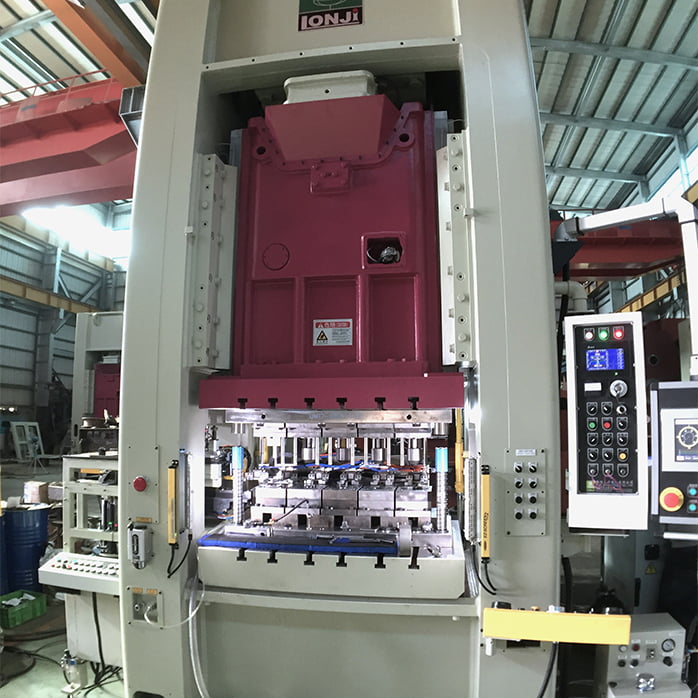

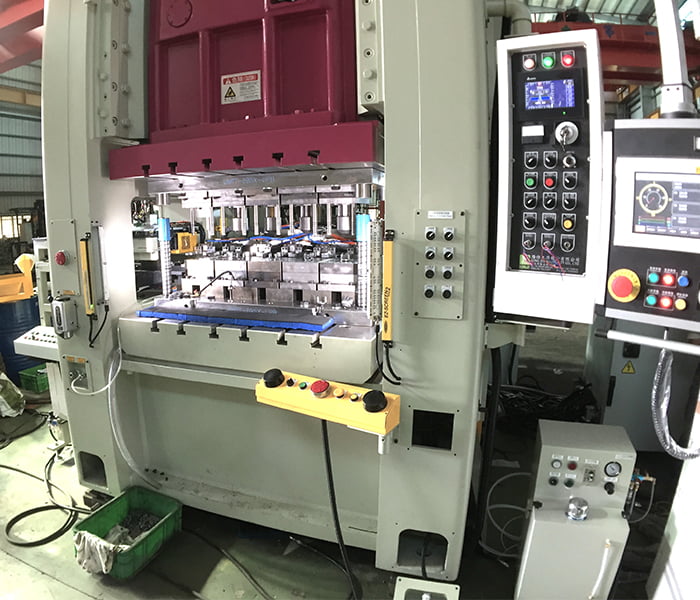

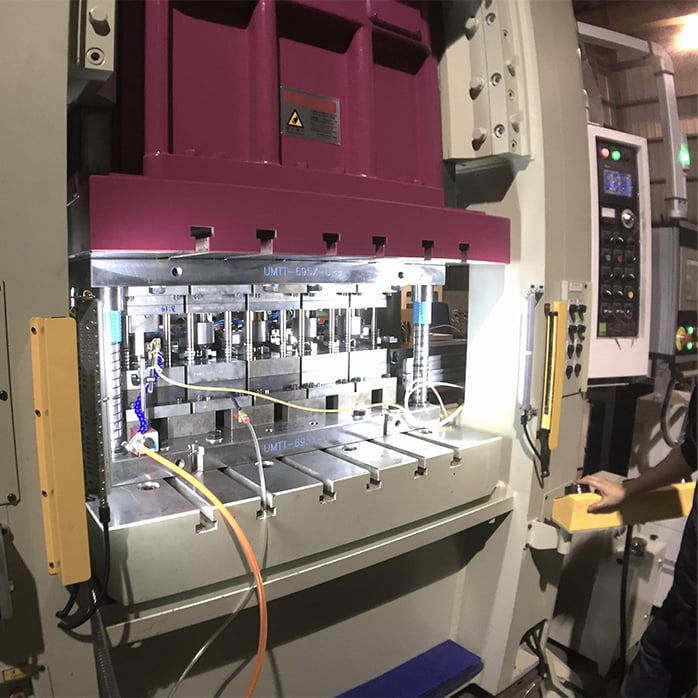

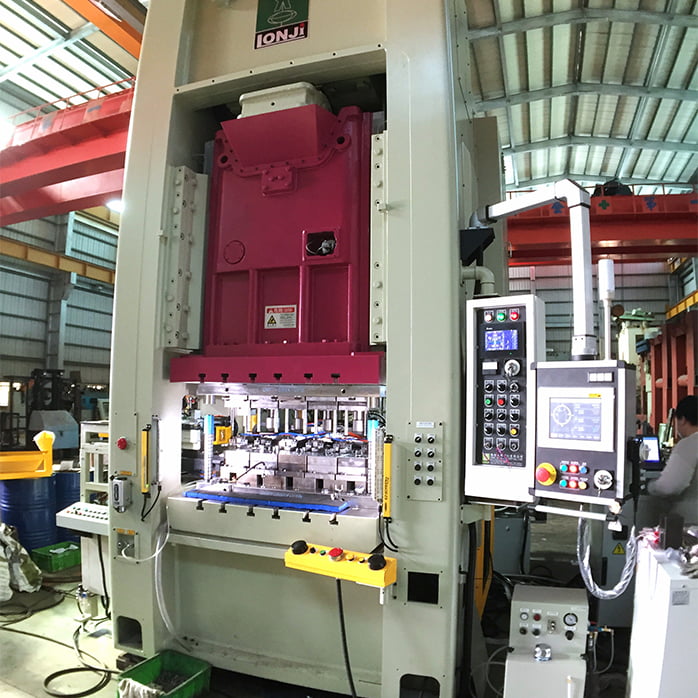

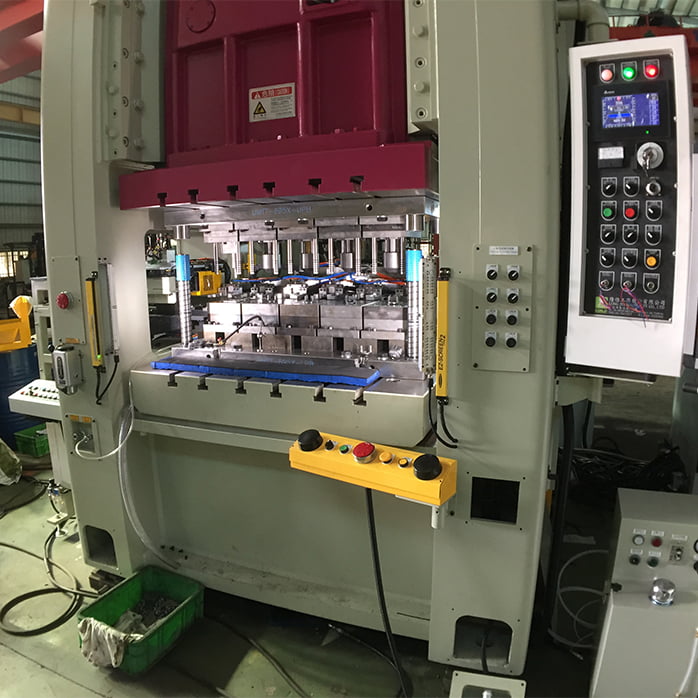

Case Studies
