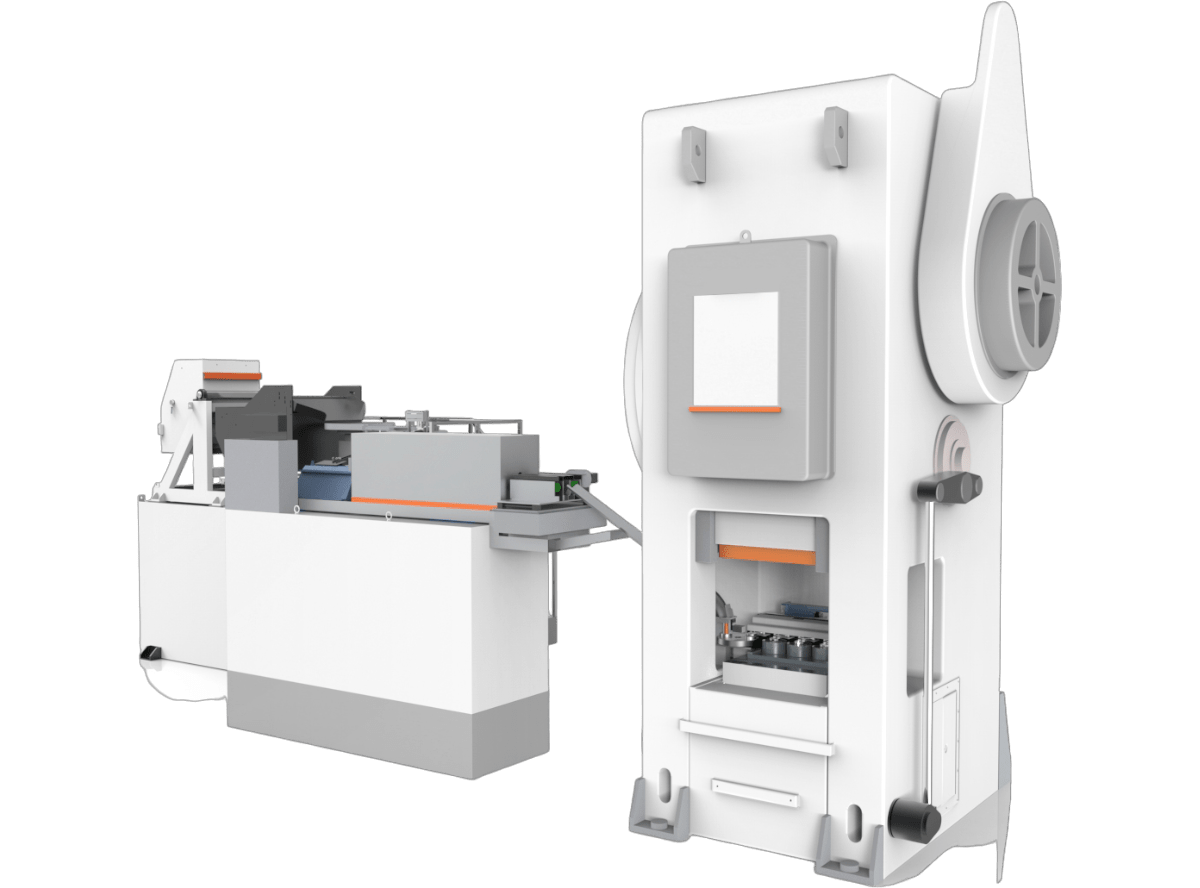

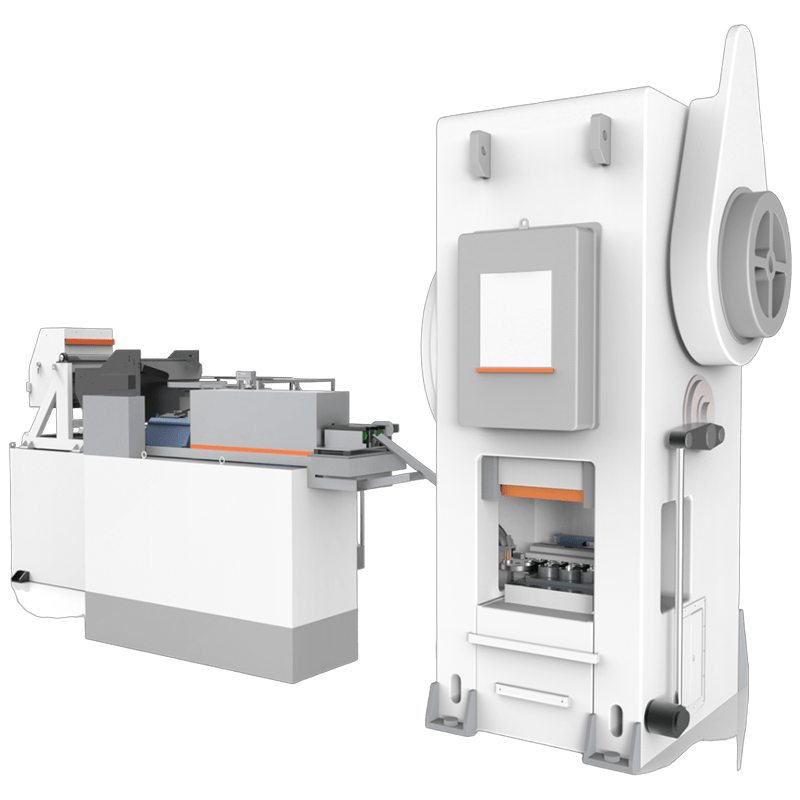

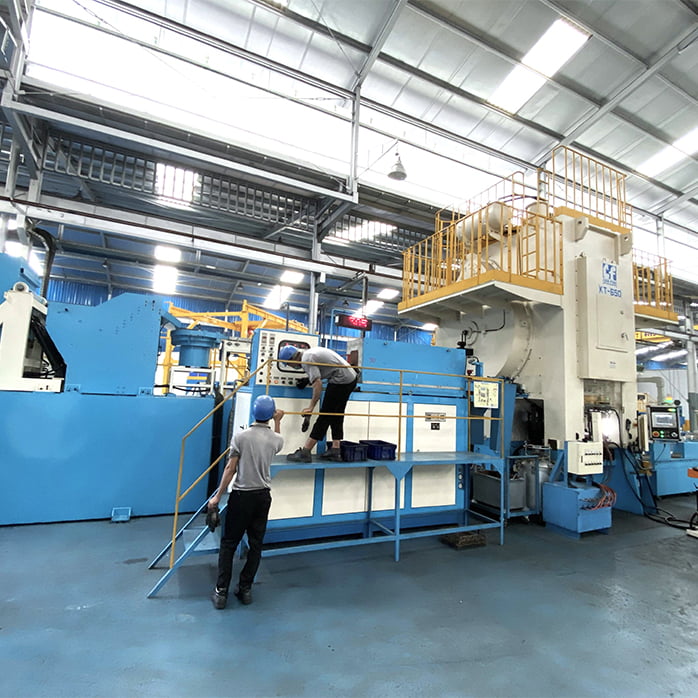

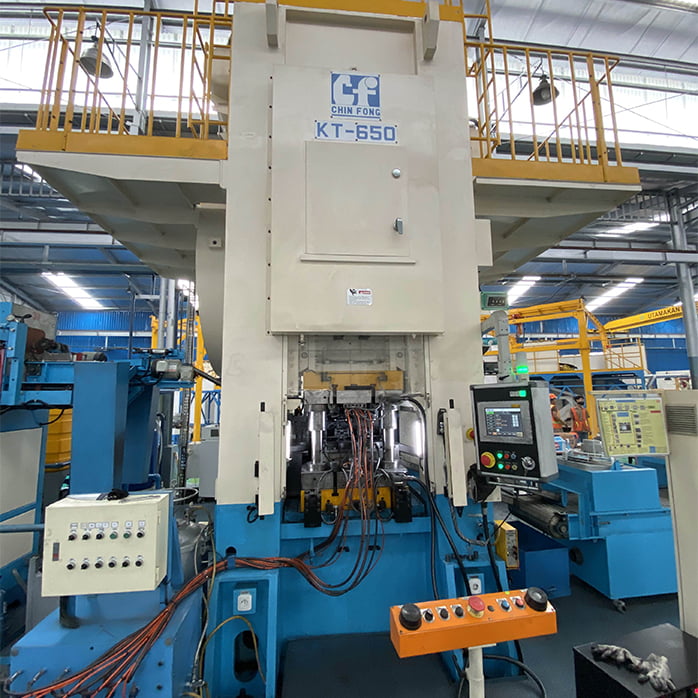

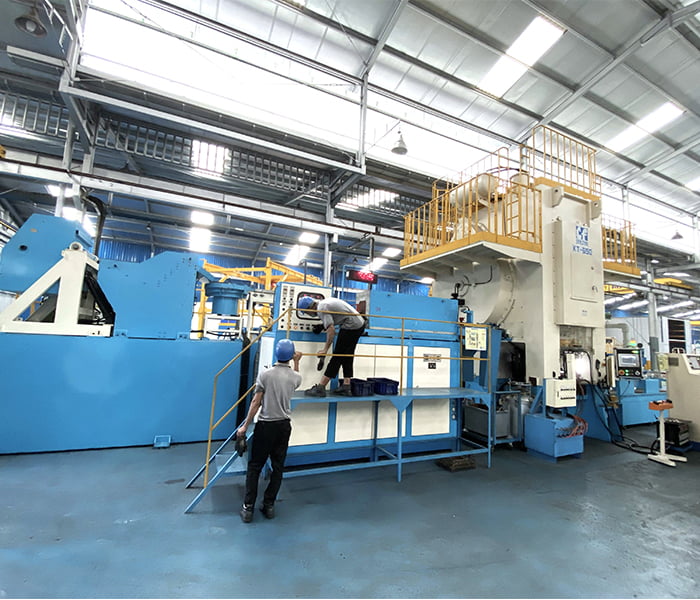

KSBT-3-S200 Hot Forging Multi Station Transfer
Performing multiple steps simultaneously, achieve low-cost investment but high-precision metal processing.
Feature
Characteristic
Provide high-quality and high-efficiency production, and meet various process processing requirements.
01
- Punch Press Attributes: Multi-Station Small Heat-Forging Punch Press
- Production Characteristics: High-speed Interlinked Production (Cam Communication Control) / Single-action Continuous Production (IO Handshake Control)
- Maximum Speed: TBD customize*
- Applicable Bed Size: <1500mm
- Punch Press Interlocking Characteristics: Synchronized Operation - Punch Press Cam Angle Tracking Control (CAM Control)
- Drive Components Equipped: Kunlin Precision Grinding Grade Low Backlash Gear and Rack (Modular Specification) + Heavy Load Linear Guide
- Standard Motor Components: Japanese Yaskawa Servo Motors + German BECKHOFF Controllers
- Number of Motor Synchronization Axes: 3 Axes
02
- Equipment Drive Section Modularization, Standardization of Spare Parts
- Configurable Punch Press Interior (rear)
- Expandable Peripheral Equipment such as Feeding and Unloading Systems
- Suitable for Low-Volume, High-Speed, Modular Production Operations
- High-Precision Transmission, Dynamic Precision within <0.05mm
- Motion Curves Adjustable by Human-Machine Interface for Optimization
- Intuitively Simple Operation Equipment, Easy Addition of Control Modules
- Expandable Machine Networking, Status Monitoring
- Achieving Consistent Production with High Precision, Efficiency, Flexibility, and High Return on Investment
Application Configuration
Configure
Suitable for industries such as computers, TFT/LCD monitors, electronics, automotive, and other medium to large-sized sheet metal stamping workpieces.
In Feed Coiler, destacker, Conveyor
Pressing Die Specializing in the design and manufacturing of multi-station dies, progressive dies, and other professional dies, we offer high-quality, customized die solutions.
3-axis Vacuum cup type, Electric gripper, Pneumatic gripper, Electromagnet, Design of heat-insulated grippers for hot stamping
Out put Robot Arm, Stacker, Conveyor, CCD Inspection Machine, Welding and Other Follow-up Needs
*Customization adjustments can be made for various machine models.
Application
Configuration
Configuration
Fitting
Accessories
Standard equipment is all equipped with well-known brands to meet the requirements of precision and high-speed operation, effectively enhancing high rigidity and load capacity.
This improves the overall performance of the equipment and the competitiveness of the products.
-
Delta
Integrated human-machine-interface
With Handwheel Simulation Function
-
Beckhoff
Controller
Best Response Speed
-
Yaskawa
Servo Motor
High Inertia and High Torque Precision Servo
-
PMI
Linear Guideway
Heavy Load and Long Life Rail
-
APEX
Gearbox
With High Precision
-
PMI
Ballscrews
C3-grade Precision Ground Ballscrews
-
PMI
Customized Ultra-Low Backlash Helical Gear/Rack
Customized Ultra-Low Backlash Helical Gear/Rack
-
Other Equipment
Automatic Lubrication System
Automatic Lubrication System
-
Other Equipment
Japan's Top 5 Bearing Brands
Japan's Top 5 Bearing Brands
-
Other Equipment
Electrical Control Box Thermostat
Electrical Control Box Thermostat (Cooling/Heating)

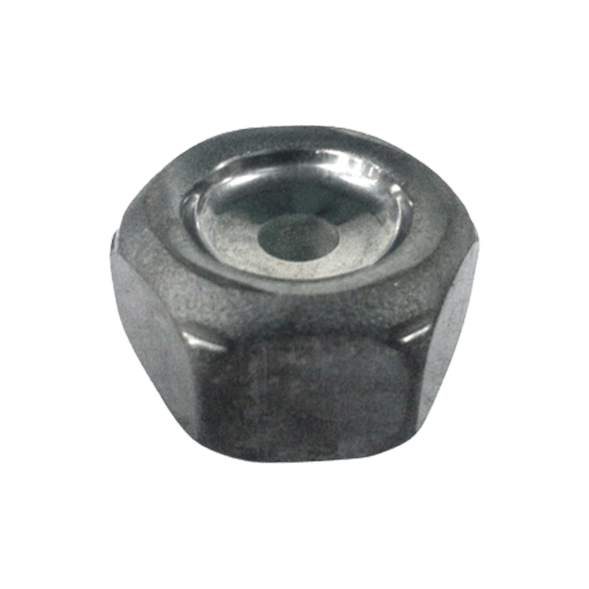

Processed Products
Processed Product
Precision stamping processing, production of high-quality metal parts.

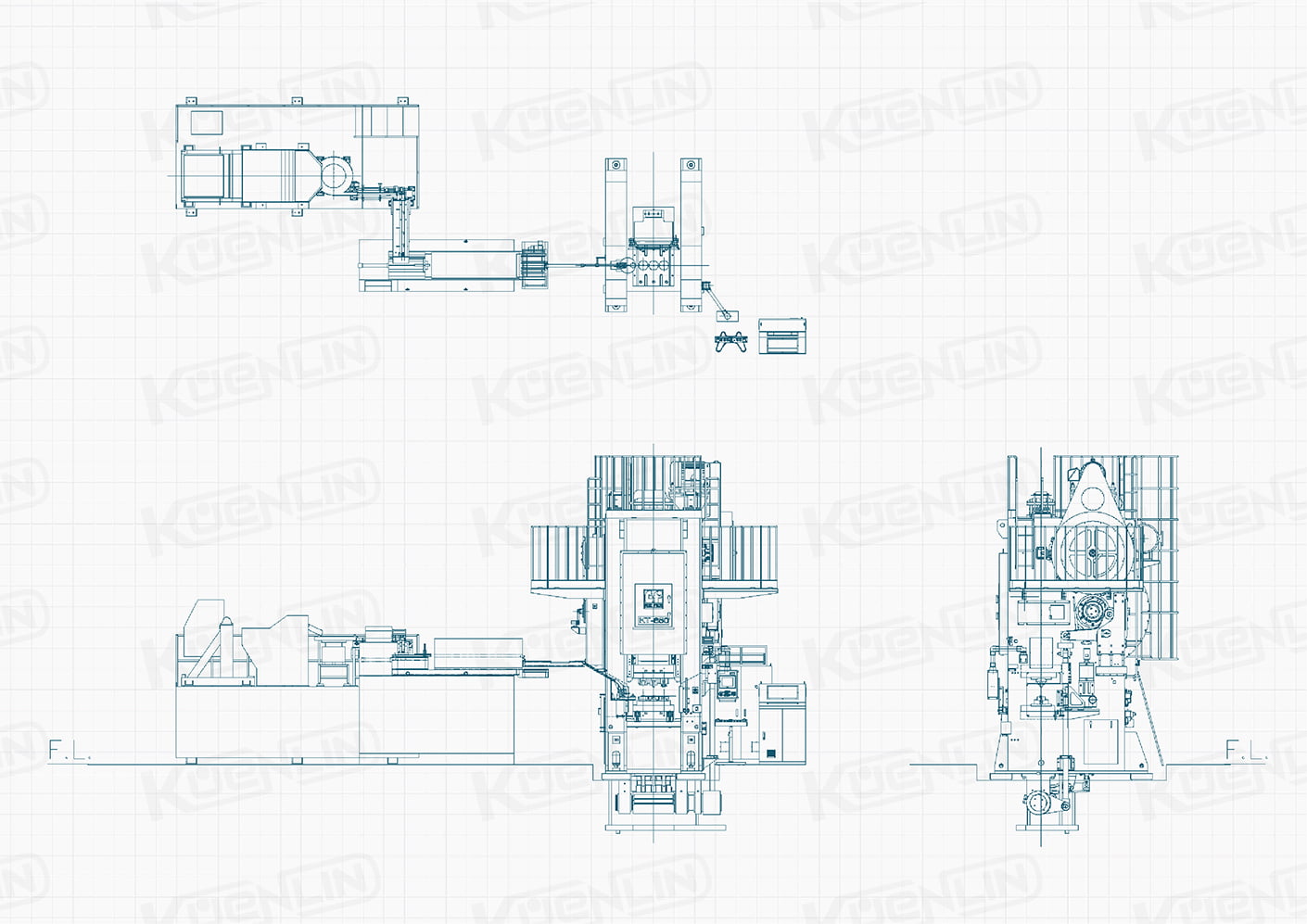

Product Specifications
Specifications
Product specifications can be customized and expanded according to your specific requirements.
Through customization, we are committed to providing optimal solutions to ensure that your investment achieves maximum value and benefits.
- 01
- Model
- KSBT-3-S200-150-100
- 02
- Feed Stroke (X)
- 0-200
- mm
- 03
- Clamping Stroke (Y)
- 0-150
- mm
- 04
- Lift Stroke(Z)
- 0-100
- mm
- 05
- Distance between rails (Clamping)
- -
- mm
- 06
- Distance between rails (Unclamping)
- -
- mm
- 07
- Max move range (Including rails)
- -
- mm
- 08
- Weight loading
- 20
- kgs
- 09
- Transfer Motion
- 3-axis
- motion
- 10
- Stroke per minute
- Max 25
- spm
*Customization adjustments can be made for various machine models.
