Provide high-quality and high-efficiency production, and meet various process processing requirements.

01
  • Suitable for: Single Point Cold Forging Press
  • Characteristics: High-Speed Linkage Production
  • Max Speed: Max 40 spm @ X stroke: 200mm (unloading) TBD customize*
  • Linkage Features: Synchronous Operation -  (CAM Control)
  • Drive Components: C3 Precision Ball Screw (Modular Specification) + Heavy Load Linear Guide
  • Motor Components: Yaskawa Servo Motor + BECKHOFF Controller
  • Motor Synchronization Axes: 3 Axes
02
  • Equipment Drive Unit Modularization, Standardized Spare Parts
  • High-Precision Transmission, Dynamic Precision Value < 0.05mm
  • Motion Curves Adjustable for Optimization through Human-Machine Interface
  • Intuitive Operation Equipment, Easy Addition of Control Modules
  • Expandable Machine Networking, Status Monitoring

Application Configuration

Configure

Suitable for industries such as computers, TFT/LCD monitors, electronics, automotive, and other medium to large-sized sheet metal stamping workpieces.

3-axis Vacuum cup type, Electric gripper, Pneumatic gripper, Electromagnet, Design of heat-insulated grippers for hot stamping
KSV-3-200S Cold Forging Single Station Transfer
*Customization adjustments can be made for various machine models.
Application
Configuration

Fitting

Accessories

Standard equipment is all equipped with well-known brands to meet the requirements of precision and high-speed operation, effectively enhancing high rigidity and load capacity.

  • Delta
    Integrated human-machine-interface

    Integrated human-machine-interface

    With Handwheel Simulation Function

  • Beckhoff
    Controller

    Controller

    Best Response Speed

  • Yaskawa
    Servo Motor

    Servo Motor

    High Inertia and High Torque Precision Servo

  • PMI
    Linear Guideway

    Linear Guideway

    Heavy Load and Long Life Rail

  • APEX
    Gearbox

    Gearbox

    With High Precision

  • PMI
    Ballscrews

    Ballscrews

    C3-grade Precision Ground Ballscrews

  • PMI
    Customized Ultra-Low Backlash Helical Gear/Rack

    Customized Ultra-Low Backlash Helical Gear/Rack

    Customized Ultra-Low Backlash Helical Gear/Rack

  • Other Equipment
    Automatic Lubrication System

    Automatic Lubrication System

    Automatic Lubrication System

  • Other Equipment
    Japan's Top 5 Bearing Brands

    Japan's Top 5 Bearing Brands

    Japan's Top 5 Bearing Brands

  • Other Equipment
    Electrical Control Box Thermostat

    Electrical Control Box Thermostat

    Electrical Control Box Thermostat (Cooling/Heating)

Product Specifications

Specifications

Product specifications can be customized and according to yourrequirements.
Kuenlin would provide the optimal solutions to achieves maximum value and benefits.

  • 01
  • Model
  • KSV-3-200S
  • 02
  • Feed Stroke (X)
  • 0-200
  • mm
  • 03
  • Clamping Stroke (Y)
  • 0-50
  • mm
  • 04
  • Lift Stroke(Z)
  • 0-50
  • mm
  • 05
  • Distance between rails (Clamping)
  • Min 180
  • mm
  • 06
  • Distance between rails (Unclamping)
  • Max 280
  • mm
  • 07
  • Max move range (Including rails)
  • Max 380
  • mm
  • 08
  • Weight loading
  • 20
  • kgs
  • 09
  • Transfer Motion
  • 3-axis
  • motion
  • 10
  • Stroke per minute
  • Max 35
  • spm
*Customization adjustments can be made for various machine models.

Case Studies

Case Studies

Case Studies

Case Studies

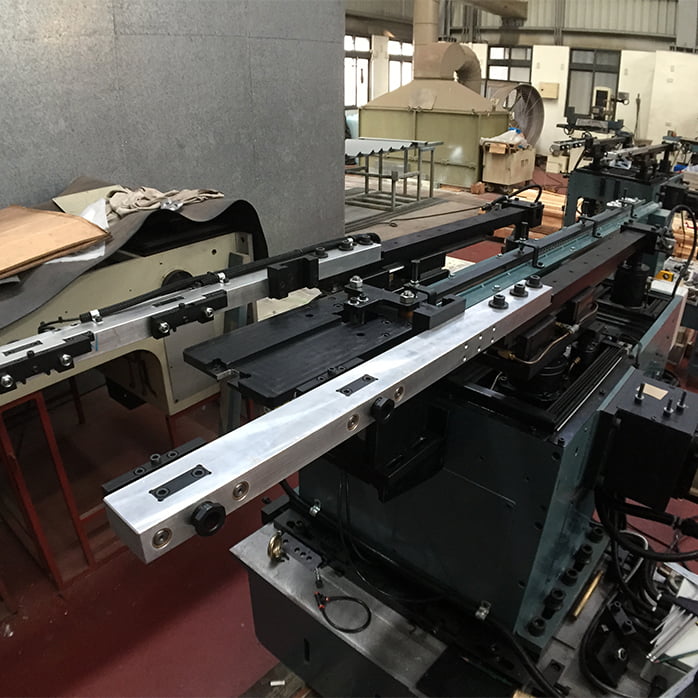

  • Infeed Mechanism
